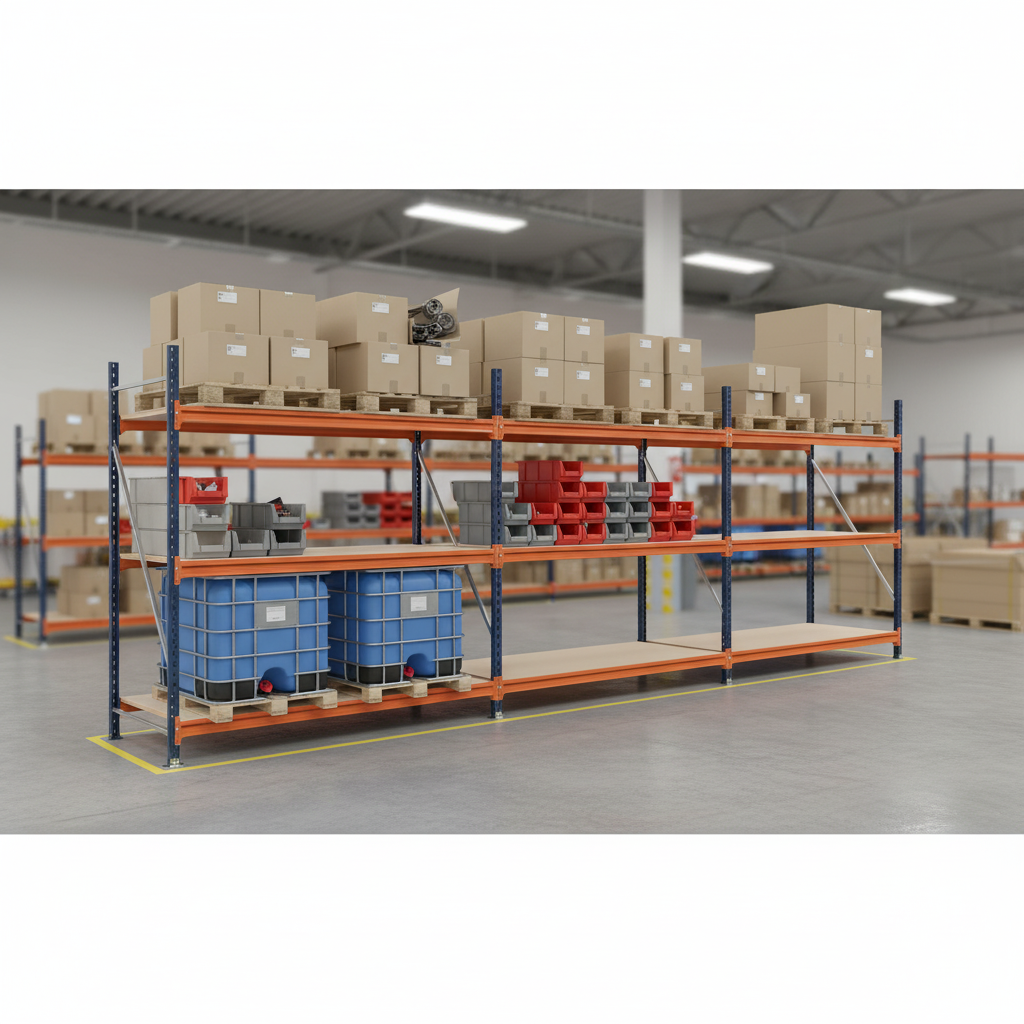

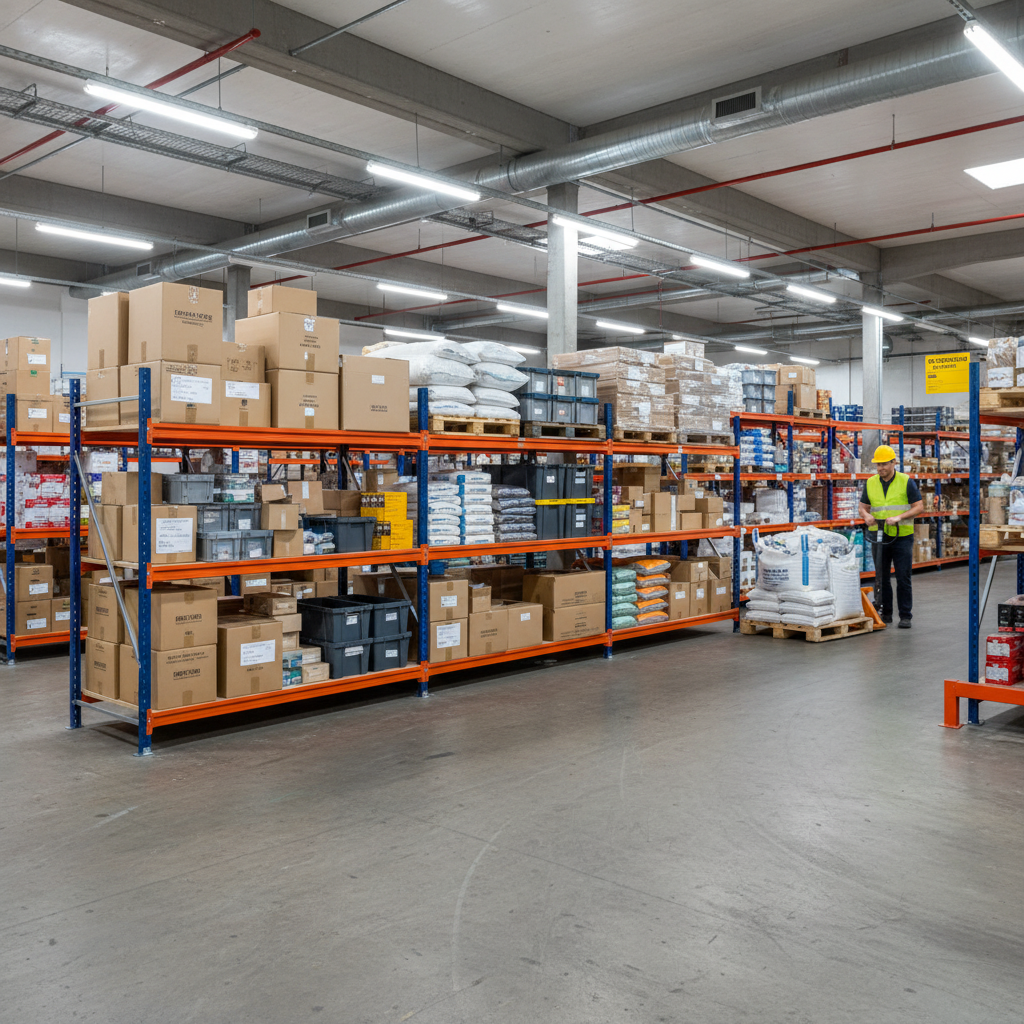

Heavy Duty Longspan Shelving - 2500mm High - Blue & Orange - Pack of 3
Questions about this unit? Talk to us
Your selection, drawn to scale
Check it fits before you order
The drawing changes with every option you pick, so you can hold it up against your wall, ceiling and doorways.
Key Features of Heavy Duty Longspan Shelving
- 3x longspan shelving bay 2500mm high
- Industrial grade steel, Ideal for storing heavy duty, bulky loads
- Tested to FEM standards
- 4x frame uprights delivered fully assembled
- Blue uprights powder coated finish
- Levels are adjustable in height every 50mm
- 2x safety locking pins per beam for extra security and to prevent dislodging
- Powder coated orange finish on the beams
- 3x chipboard decks per bay, 22mm thickness
- Up to 300kg, 320kg, 440kg, 500kg, 550kg, 590kg, 610kg, 670kg, 810kg or 850kg load capacities per level for heavy duty storage (as selected above)
- Ground level can be used for pallet storage - no bottom beams required
- Floor fixings and steel leveling plates are provided
- Boltless assembly (except when fixing to the floor)
- Longspan shelving support beams are available for extra reinforcement to levels
- Extension bays are available - expand your longspan shelving to maximise storage space
UDL (Uniformly Distributed Load) - The load capacities stated are the maximum weights each level can hold. This weight needs to be evenly distributed across each level.
Heavy Duty Longspan Shelving is one of our most robust shelving units. Perfect for use in an industrial/warehouse environment, these units can be used for a wide range of storage due to their large load capacity. It is constructed using high quality, thick upright frames and beams, once assembled these shelving units are impressively sturdy and reliable. Multiple sizes are available for your storage requirements, choose from up to 2700mm wide units, great for bulkier storage.
Ideal Uses:
- Industrial Environment
- Warehouses
- Heavy Duty Storage
Technical Specifications
| Specification | Measurement |
|---|---|
| Height | 2500mm |
| Depth | 600mm or 900mm (as selected above) |
| Beam Width | 1000mm, 1200mm, 1400mm, 1825mm, 1900mm, 2300mm or 2700mm (as selected above) |
| External Bay Width (overall, outside of uprights) | 1100mm, 1300mm, 1500mm, 1925mm, 2000mm, 2400mm or 2800mm (as selected above; beam width + 100mm for the two 50mm upright frames) |
| Clear Entry per Bay (usable opening) | 990mm, 1190mm, 1390mm, 1815mm, 1890mm, 2290mm or 2690mm (as selected above; beam width − 10mm) |
| Thickness of Decks | 22mm |
| Load Capacity per Level | 300kg, 320kg, 440kg, 500kg, 550kg, 590kg, 610kg, 670kg, 810kg or 850kg UDL per shelf (as selected above) |
Frequently Asked Questions
What is the maximum load capacity per shelf?
The maximum load capacity is up to 850kg per level, depending on the dimensions of the shelving unit.
Can the height of the shelves be adjusted?
Yes, the levels are adjustable in height every 50mm, allowing for customization based on your storage needs.
Is assembly required for this shelving?
The shelving comes with boltless assembly for easy setup, except for floor fixing.
