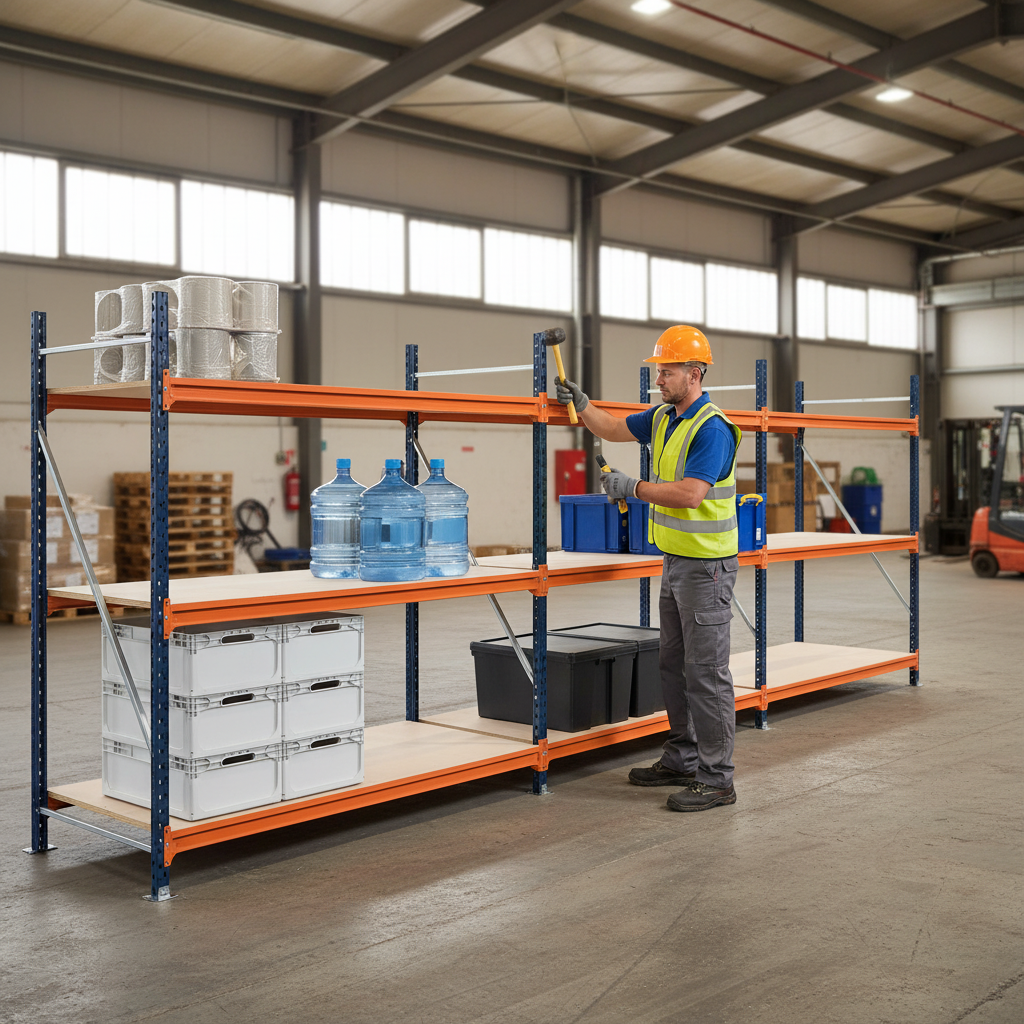

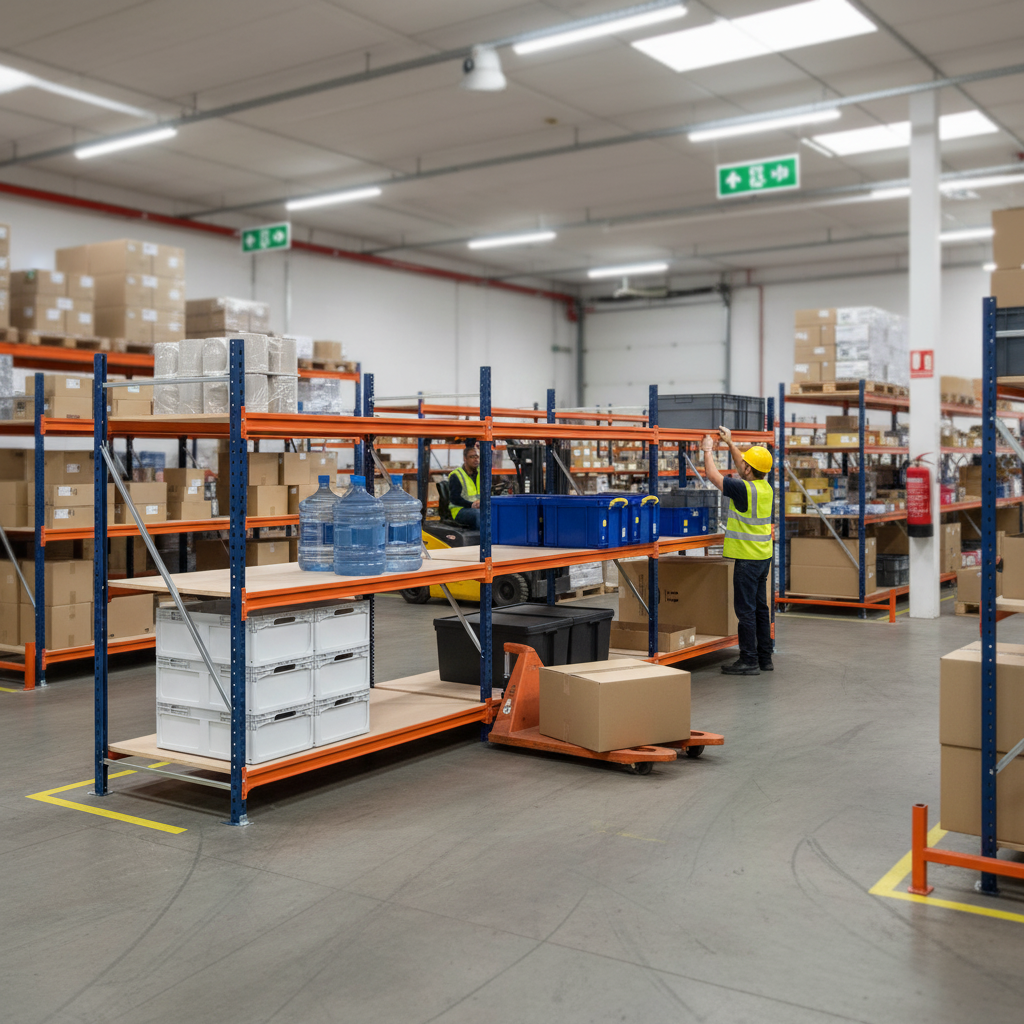

Heavy Duty Longspan Shelving - 3000mm High - Blue & Orange - Pack of 3
Questions about this unit? Talk to us
Your selection, drawn to scale
Check it fits before you order
The drawing changes with every option you pick, so you can hold it up against your wall, ceiling and doorways.
Key Features of Heavy Duty Longspan Shelving
- 3x Longspan shelving bay 3000mm high
- Industrial grade steel, ideal for storing heavy duty, bulky loads
- Tested to FEM standards
- 4x frame uprights delivered fully assembled
- Blue uprights with powder coated finish
- Levels are adjustable in height every 50mm
- 2x safety locking pins per beam for extra security and to prevent dislodging
- Powder coated orange finish on the beams
- 3x chipboard decks per bay, 22mm thickness
- Up to 300kg, 320kg, 440kg, 500kg, 550kg, 590kg, 610kg, 670kg, 810kg or 850kg load capacities per level for heavy duty storage (as selected above)
- Ground level can be used for pallet storage - no bottom beams required
- Floor fixings and steel leveling plates are provided
- Boltless assembly (except when fixing to the floor)
- Longspan shelving support beams available for extra reinforcement to levels
- Upright frame leg protectors available separately
- Extension bays available - expand your longspan shelving to maximize storage space
UDL (Uniformly Distributed Load) - The load capacities stated are the maximum weights each level can hold. This weight needs to be evenly distributed across each level.
Heavy Duty Longspan Shelving is one of the most robust shelving units. Perfect for use in an industrial or warehouse environment, these units can be used for a wide range of storage due to their large load capacity. It is constructed using high quality, thick upright frames and beams. Once assembled, these shelving units are impressively sturdy and reliable. Multiple sizes are available for your storage requirements, choose from up to 2700mm wide units, great for bulkier storage.
Ideal Uses:
- Industrial Environment
- Warehouses
- Heavy Duty Storage
Technical Specifications
| Specification | Measurement |
|---|---|
| Height | 3000mm |
| Depth | 600mm or 900mm (as selected above) |
| Beam Width | 1000mm, 1200mm, 1400mm, 1825mm, 1900mm, 2300mm or 2700mm (as selected above) |
| External Bay Width (overall, outside of uprights) | 1100mm, 1300mm, 1500mm, 1925mm, 2000mm, 2400mm or 2800mm (as selected above; beam width + 100mm for the two 50mm upright frames) |
| Clear Entry per Bay (usable opening) | 990mm, 1190mm, 1390mm, 1815mm, 1890mm, 2290mm or 2690mm (as selected above; beam width − 10mm) |
| Thickness of chipboard decks | 22mm |
| Load capacity per level | 300kg, 320kg, 440kg, 500kg, 550kg, 590kg, 610kg, 670kg, 810kg or 850kg UDL per shelf (as selected above) |
FAQ
Q: How much weight can each shelf hold?
A: Each shelf can hold up to 850kg, depending on the width and depth of the bay.
Q: Is assembly required?
A: Yes, the shelving units are delivered with boltless assembly, except for floor fixing.
Q: Can I expand my shelving unit?
A: Yes, extension bays are available to expand your longspan shelving for maximizing storage space.
