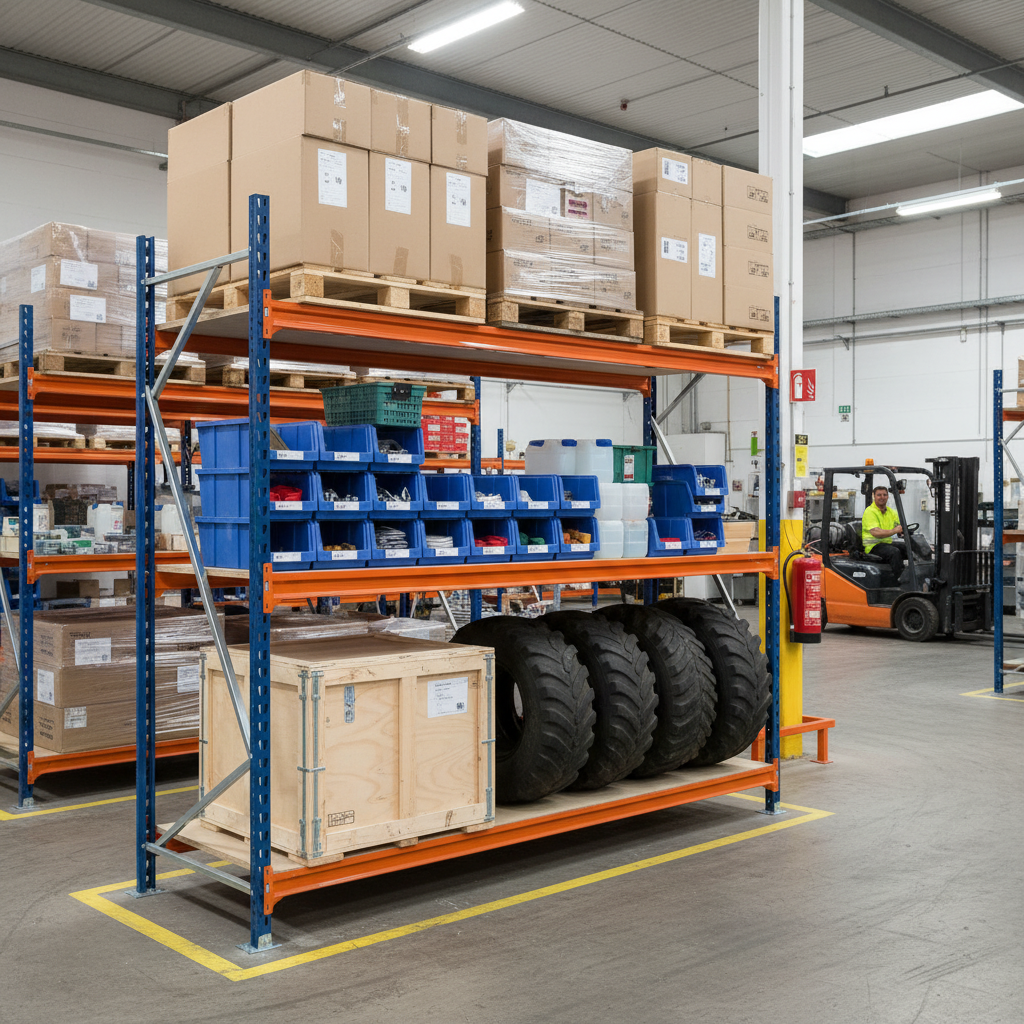

Heavy Duty Longspan Shelving Extension Kit - 3000mm High - Blue & Orange
Questions about this unit? Talk to us
Your selection, drawn to scale
Check it fits before you order
The drawing changes with every option you pick, so you can hold it up against your wall, ceiling and doorways.
Key Features of Heavy Duty Longspan Shelving
- 1x Extension Bay for Longspan shelving 3000mm high
- Extension bay includes 1x fully assembled upright frame
- Industrial grade steel, ideal for storing heavy duty, bulky loads
- Tested to FEM standards
- Upright frame has a blue powder coated finish
- Adjustable levels in height every 50mm
- 2x safety locking pins per beam for extra security and to prevent dislodging
- Powder coated orange finish on the beams
- 3x chipboard decks, 22mm thickness
- High load capacities per level for heavy duty storage (varies between the width of bay)
- Ground level can be used for pallet storage - no bottom beams required
- Floor fixings and steel leveling plates are provided
- Boltless assembly (except when fixing to the floor)
- Longspan shelving support beams are available separately for extra reinforcement to levels
- Pack offers are also available
UDL (Uniformly Distributed Load) - The load capacities stated are the maximum weights each level can hold. This weight needs to be evenly distributed across each level.
Heavy Duty Longspan Shelving is one of our most robust shelving units. Perfect for use in an industrial or warehouse environment, these units can be used for a wide range of storage due to their large load capacity. It is constructed using high quality, thick upright frames and beams; once assembled, these shelving units are impressively sturdy and reliable. Multiple sizes are available for your storage requirements, choose from up to 2700mm wide units, great for bulkier storage.
Ideal Uses:
- Industrial Environment
- Warehouses
- Heavy Duty Storage
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Frame Height | 3000mm |
| Depth | 600mm or 900mm (as selected above) |
| Beam Width | 1000mm, 1200mm, 1400mm, 1825mm, 1900mm, 2300mm or 2700mm (as selected above) |
| External Bay Width (overall, outside of uprights) | 1100mm, 1300mm, 1500mm, 1925mm, 2000mm, 2400mm or 2800mm (as selected above; beam width + 100mm for the two 50mm upright frames) |
| Clear Entry per Bay (usable opening) | 990mm, 1190mm, 1390mm, 1815mm, 1890mm, 2290mm or 2690mm (as selected above; beam width − 10mm) |
| Width Added to an Existing Run | 1050mm, 1250mm, 1450mm, 1875mm, 1950mm, 2350mm or 2750mm (as selected above; beam width + one 50mm upright frame — the extension bay shares its other upright with the bay it joins) |
FAQ
What is the maximum load capacity?
The maximum load capacity varies based on the width of the bay and evenly distributed loads.
Is assembly required?
Yes, the shelving units require boltless assembly, except when fixing to the floor.
Can I use this shelving for pallet storage?
Yes, the ground level can be used for pallet storage without needing bottom beams.
